Quantum Fusion E Rear-Wheel Drive Electric Wheelchair – Active Mobility Ltd
Call 01789 339 738 Book a free home assessment
Pride Fusion E – Electric Wheelchair - Active Mobility Ltd
Back

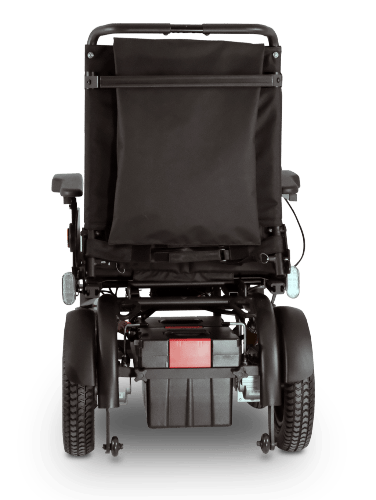

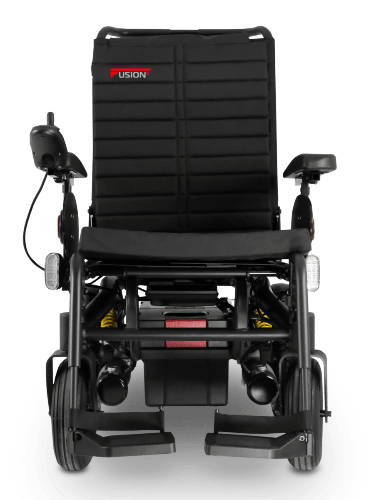

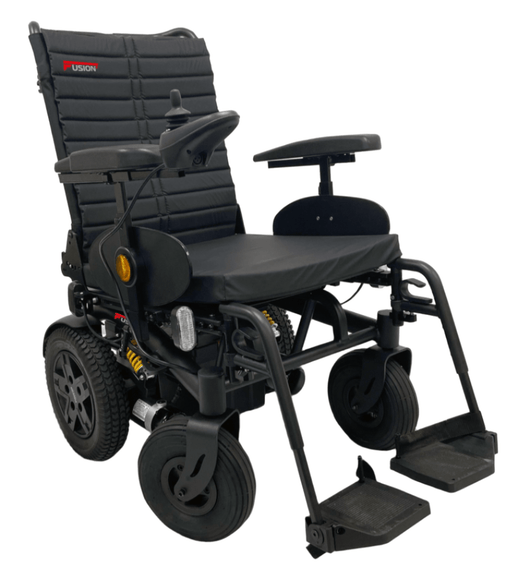

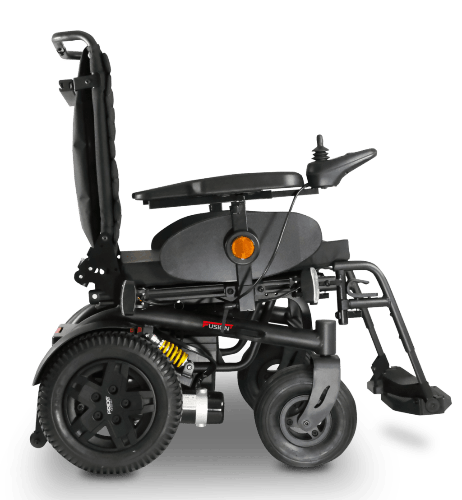

Quantum Fusion E Compact Electric Wheelchair Rear-Wheel Drive Modular

“Great comfort, smooth ride – ideal for everyday indoor and outdoor use!”
£2,800.00 with VAT Relief
(£3,360.00 Inc. VAT)
Qualifies for VAT relief Find out more
Includes Engineer Delivery – fully set up at home (worth £150)

Unsure if this is right for you?

Speak to our friendly team for honest advice.

Ask a question

Whether you’d like more details, guidance on suitability, or to arrange a visit or demonstration, simply fill in the form and we’ll be in touch shortly.

Read more

Specifications

Class Type
Rear-wheel drive
Maximum Speed
4 mph (6 mph with lights package)
Maximum Range
25.2 km (15.7 miles)
Battery
2 × 50 Ah (24V), 17 kg
Weight Capacity
150 kg (23.6 st)
Total Weight
86 kg (without batteries)
Turning Radius
64 cm
Ground Clearance
5.1 cm
Suspension
Rear suspension (independent rear-wheel drive system)
Motor Type
DC; VR2 control system
Tyres
Solid (pneumatic option)
Wheel Size
25.4 cm (10") front, 35.5 cm (14") drive
Frame Material
Aluminium / steel composite
Fold Type
Modular dismantle (not folding)
Dimensions
L 105 cm × W 63 cm
Warranty
2 years

Strong outdoor performance with seating that can grow with your needs

If you want a chair that feels sure-footed outdoors but may need more support as time goes on, it pays to choose one that can adapt. The Quantum Fusion E is a rear-wheel drive electric wheelchair, also known as a powerchair, with a modular design that works with Quantum's rehab seating and an optional power tilt.

Big 14-inch drive wheels, rear suspension and good torque help it grip on rougher ground and climb obstacles with less fuss. It takes users up to 23.6 stone (150 kg) and can be set to 4 mph, or 6 mph with the lights package, so it suits both pavement trips and longer outings.

✅ Key Features & Benefits

  • Rear-wheel drive with 14-inch drive wheels
    Rear-wheel drive feels stable and natural to steer outdoors, and the big wheels help over kerbs, grass edges and uneven paths.

  • Modular seating with optional power tilt
    Works with Quantum's ION and rehab seating, and power tilt can be added to help with pressure relief and comfort if your needs change.

  • Up to 23.6 stone (150 kg)
    A sturdy chair with a higher weight limit than many everyday models, for a confident, stable ride.

  • Rear suspension
    Absorbs bumps from paving and rough ground, so fewer jolts travel up through your back.

  • Up to 25.2 km (15.7 miles) range
    Two 50 Ah batteries give you enough for a busy day out before charging overnight.

  • 4 mph, or 6 mph with lights
    Choose the slower setting for pavements, or the 6 mph lights package if you want to cover ground faster.

  • Solid tyres, pneumatic option
    Solid tyres never puncture; air-filled tyres are available if you prefer a softer ride.

  • Simple VR2 joystick
    Easy, responsive control for driving in busy places and tight spots.

Colours available

Black.

Who it suits best

  • Regular outdoor use on pavements, paths and parks
  • You may need more seating support or tilt in future
  • Users up to 23.6 stone (150 kg)
  • Daily use for most of the day

Worth knowing before you buy

The Fusion E weighs 86 kg before its batteries go in, so it does not fold for a car boot. Parts such as the legrests, armrests and batteries come off, but most people transport it in a wheelchair-accessible vehicle. Rear-wheel drive chairs need a bit more turning room indoors than mid-wheel drive chairs, so if your home has very tight corners, ask us to compare the two. Seating options change the final price, so an assessment helps.

Questions customers ask us

Can it go at 6 mph?
Yes, with the optional lights package. The standard version is 4 mph.

Can I add tilt later?
Power tilt is available as an option. Talk to us about what you need now and what you might need later.

Can I try one?
Yes. Call first so we can check it's in stock, and if it isn't we can usually arrange a demo model. You can also book a home assessment.
